Features and Benefits

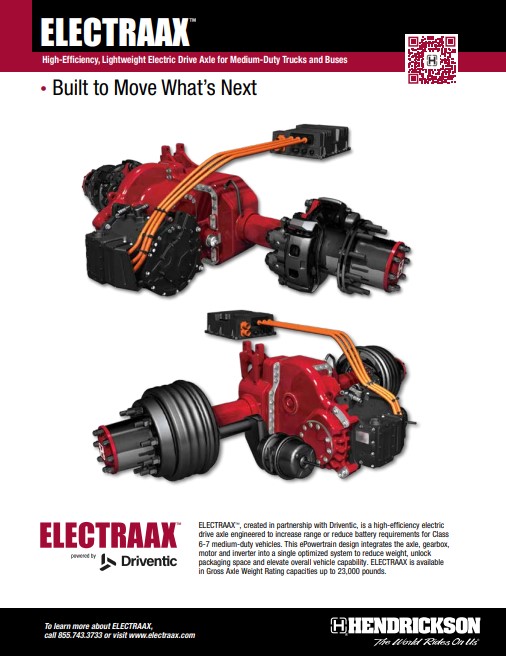

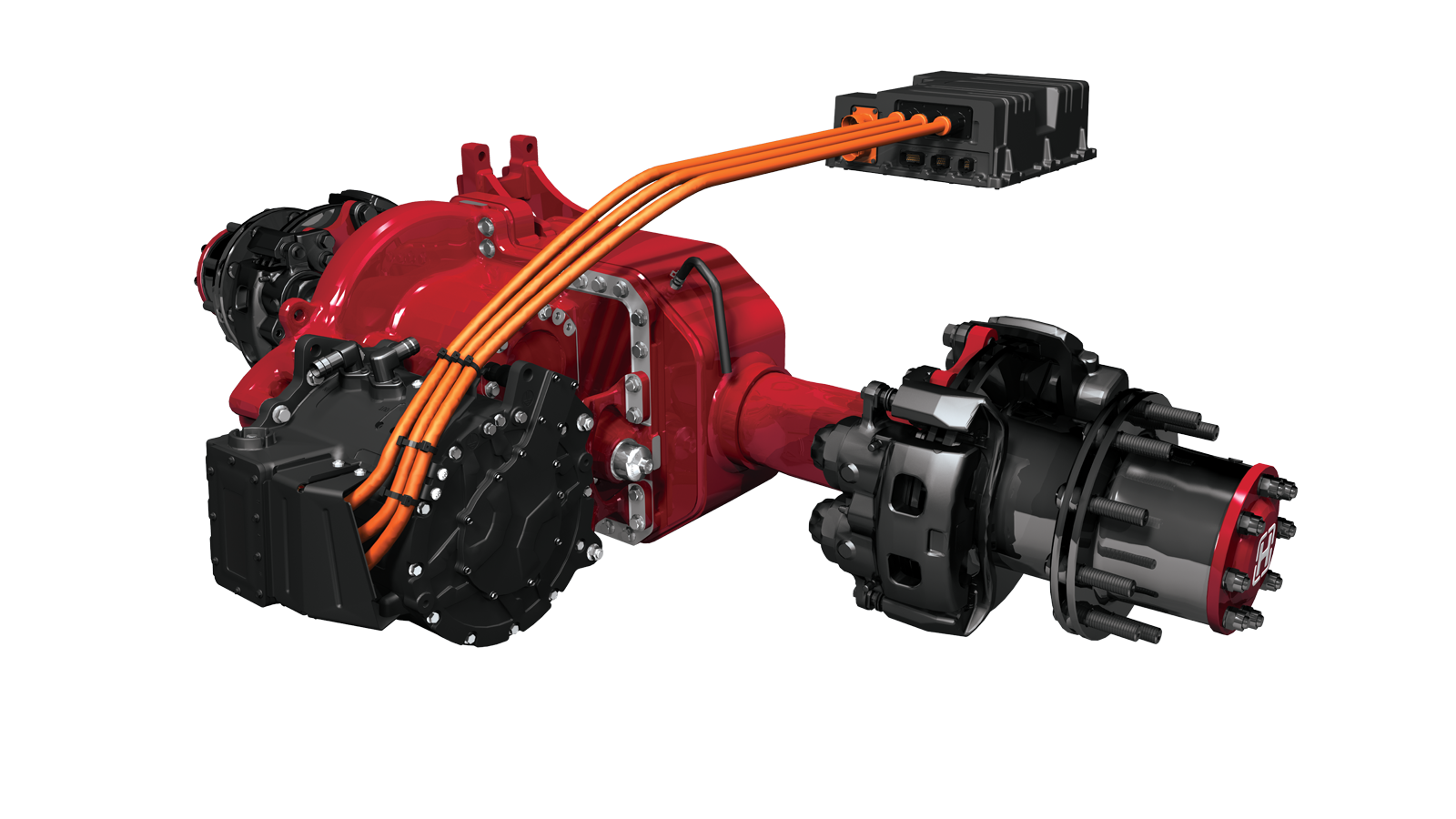

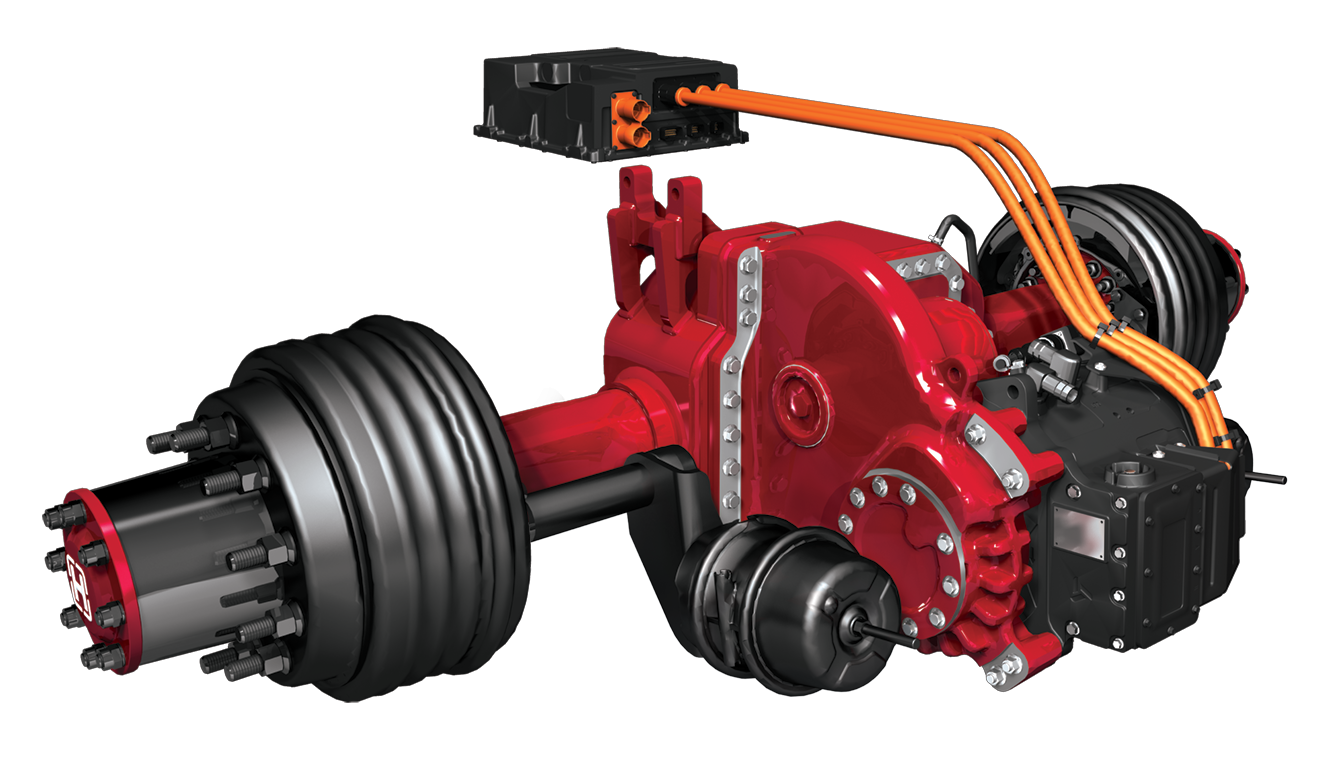

ELECTRAAX, created in partnership with Driventic, is a high-efficiency electric drive axle engineered to increase range or reduce battery requirements for Class 6-7 medium-duty vehicles. This ePowertrain design integrates the axle, gearbox, motor, and inverter into a single optimized system to reduce weight, unlock packaging space, and elevate overall vehicle capability. ELECTRAAX is available in capacities up to 23,000 pounds.

INTEGRATED ePOWERTRAIN

• Axle, gearbox, motor and inverter integrated into a single optimized system
• The application-specific architecture allows ELECTRAAX to deliver up to 94% system efficiency
• Elevated energy efficiency extends vehicle range by up to 40%*

SINGLE-SPEED GEARBOX

• Smooth drivability without shift quality concerns, optimized for delivery market driving conditions
• Cylindrical parallel shaft gears reduce losses compared to designs with 90-degree hypoid gearing
• Reduced friction relative to multi-speed gearboxes
• Increased reliability and reduced complexity through fewer components

MODULAR DESIGN

• Variety of track width, gear train, suspension and brake options for enhanced flexibility
• Integrated, fabricated axle framework reduces vehicle weight by up to 357 pounds*
• Designed for ease of OEM chassis integration
• Frees up packaging space for additional batteries or other vehicle equipment

HIGH-PERFORMANCE INVERTER

• Optimized power density
• Dual-core DSP and dual-core application controller for high control accuracy
• ISO 21434 cybersecurity and ISO 26262 functional safety compliant
• AUTOSAR based software, ECE R10 certified
• Latest IGBT technology

POWERFUL MOTOR

• Extended peak torque for sustained, consistent power during acceleration and hill climbs
• High power efficiency
• Full motor-torque regenerative braking helps maximize energy recovery
• Externally mounted for service without disrupting the gear train

*Compared to central drive systems powering traditional drivetrains
