10K COMFORT AIR

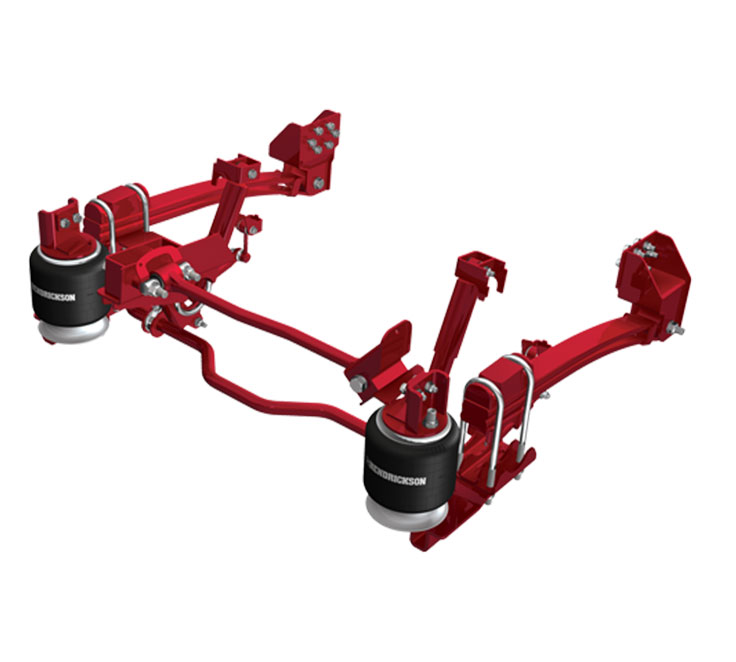

The COMFORT AIR® 10K rear air suspension is designed and manufactured specifically for the cut away and specialty vehicle market. Available at a 10,000 lbs. capacity rating, COMFORT AIR offers a kneeling feature with minimal forward roll while maintaining stability and driver handling. Air springs and shocks work together to adjust to changing road conditions, providing passengers with a comfortable ride.

Specifications

Model	Capacity (lbs.)	Suspension Weight(lbs.)	Ride Heights
COMFORT AIR	10,0000	270	6.5"-8.2" (with straight frames)

Features & Benefits

Superior Handling Characteristics

Optimized configuration provides improved driver feel for increased handling and confidence when performing maneuvers.

Excellent Ground Clearance

8.2"in. at typical ride height
8.3"in. at jounce

Air Springs

Enhance passenger comfort
Positioned near the axle to transfer more load to the air spring and allow for smoother ride
Less twist induced on axle from main support spring

Shocks

Positioned and tuned for optimum damping characteristics

Main Support Members

Longer front limb length transfers less loads through the frame connection and reduces fatigue
Designed to reduce roll forward during kneeling operation <1.5"in.
Designed to achieve 3.5" in. of kneel

Genuine Hendrickson Torque Rods

Optimized configuration helps improve handling and roll stiffness
Control lateral forces to maintain axle position
Enhance handling during cornering

Structural Components

Provides over 8.2"in. ground clearance

Rubber Bushings

Reduces maintenance and front end noise
Requires no lubrication
