Auxiliary > Truck Non-Steer Lift Axle > TOUGHLIFT FRT16

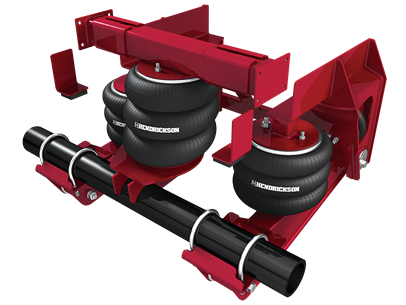

TOUGHLIFT FRT16

16K Fixed Axle Suspension System (formerly HLR-3)

The TOUGHLIFT FRT16 Series is a high-lifting, light duty, fixed lift axle system available in tag axle configurations.

Literature

Sales Literature

H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k H769 - Truck Lift Axle SuspensionsREV F02/206.1M

Service Literature

H621 Non-Steerable Lift Axle Installation InstructionsREV -12/03636KB H743 - Auxiliary Customer PoliciesREV -11/1286k OM-H757 Owner's Manual - Non-Steerable Auxiliary Axle SystemsREV F07/192.2MB H800 Lift Axle Warranty Claim Request FormREV C02/2158k

Technical

H750 - Truck Lift Axle Specification GuideREV J11/20257k H856 - Brake CertificationsREV -12/20202k

Selection Guides

TP-H854 Driveline MeasurementREV -02/212.2M
AUXILIARY
LITERATURE
  • Available in multiple beam versions to accommodate varying dimensions of truck applications and configurations
  • Accommodates ride heights of 14.5 to 16 inches
  • Axle is positioned at the rear of the suspension, allowing greater clearance of vehicle undercarriage
  • Available for tag axle configurations
