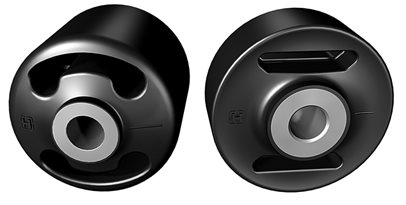

Pivot Connections

Hendrickson offers two different pivot connection systems: QUIK-ALIGN® and a welded collar. QUIK-ALIGN simplifies axle alignment and uses a specially designed shear-type bolt combined with eccentric and concentric alignment collars. The welded collar connection uses a 11/8-inch diameter threaded pivot bolt with steel collars. The axle is aligned, then the collars are welded in place.
