RTR® Ready To Roll
Remember This

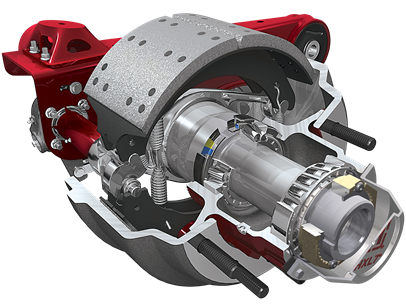

HXL3® , HXL5® and HXL7® Ready-To-Roll® Wheel-end Components

For fully integrated solutions that minimize operating costs and improve performance,  specify a Hendrickson Ready-To-Roll® (RTR®) wheel-end package. Available on all INTRAAX® and VANTRAAX® integrated suspension systems and TRLAXLE® non-integrated axles, Ready-To-Roll wheel-ends are approved for applications up to and including 25,000 pounds per axle. Hendrickson's RTR packages offer an impressive choice of hubs, drums, brake chambers, slack adjusters, ABS sensors and other options.

  Std-Service HXL3® HXL5® HXL7®
Spindles HP, HN HP, HN HP, HN HP Only
Limited Warranty On-highway 1-year 3-year 5-year 7-year
Off-Road 1-year 1-year 3-year 3-year
Hub Material Ductile Iron ✓ ✓ ✓ ✓
ADI ✓ ✓ ✓ ✓
Aluminum ✓ ✓ ✓ ✓
Lube Type SAE 80/90 Oil SAE 80/90 Gear Oil or 75-90 Synthetic Semi-fluid Grease Semi-fluid Grease
Hub Cap Vented, Bolt-on Ventless, Bolt-on Ventless,Bolt-on Ventless, Corrosion Resistant, Bolt-on
Features Patented Ventilation System   ✓ ✓ ✓
PRECISION  Nut   PRECISION320™  & PRECISION240® PRECISION320  & PRECISION240 PRECISION
320
Allows for wide base tires with 2-inch offset rims HP Only HP Only HP Only ✓
TIS Capable TIREMAAX® PRO & CP TIREMAAX PRO & CP TIREMAAX PRO & CP TIREMAAX PRO & CP
