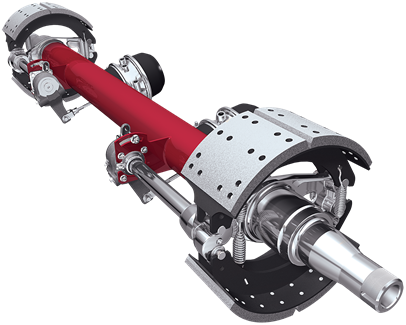

Hendrickson Trailer Axle

In addition to our integrated axle and suspension products such as INTRAAX® and VANTRAAX® that dominate the NAFTA market, Hendrickson now offers a full line of non-integrated trailer axles for the global commercial and industrial markets.

By combining Hendrickson Trailer Axles with HT™ air-ride suspensions, Hendrickson offers the widest variety of suspension / axle combinations in the industry.

Now available with MAXX22T

Spindle Type Suspension Axle Diameter 1/2" Nom. Wall 5/8" Nom. Wall 5/8" HD Wall 3/4" Wall Solid Bar
HN Mechanical Spring 5"round Up to 22,500 Up to 25,000 Up to 25,400 Up to 27,000 N/A
Air Ride 5"round Not Allowed Up to 22,500 Up to 23,000 Up to 25,000 N/A
HP Mechanical Spring 5"round Up to 22,500 Up to 25,000 Up to 25,400 Up to 27,000 N/A
Air Ride 5"round Not Allowed Up to 22,500 Up to 23,000 Up to 25,000 N/A
