| Model |
HN 422FR |
HN 482FR |
|
|
| Suspension Weight1 (lbs.) |
888 |
911 |
|
|
| Suspension Rating2 (lbs.) |
42,000 |
48,000 |
|
|
| GVW Approval3 (lbs.) |
73,000 |
80,000 |
|
|
| Diagonal Articulation4 (in.) |
17 |
17 |
|
|
| Ride Heights (in.) |
9.5, 10.5, 11.5,
13.25 and 15.5 |
9.5, 10.5, 11.5,
13.25 and 15.5 |
|
|
| Axle Spacing (in.) |
52, 54, 60, 72.5 |
54, 60, 72.5 |
|
|

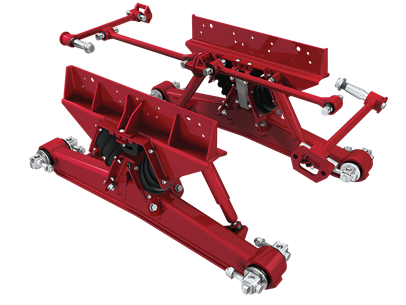

1. Suspension weight includes complete suspension, as shown above, at 9.5-inch ride height and 54-inch axle spacing.
2. Capacity ratings approved for fire and rescue applications only.
3. Contact Hendrickson for applications that may exceed GVW approval ratings.
4. Suspension articulation may exceed vehicle's capability and may be limited by vehicle manufacturer; vehicle manufacturer installed axle stops may restrict suspension's articulation.
- Hendrickson approves the use of HN FR in fire and rescue vehicle applications. All such applications must comply with applicable Hendrickson specifications and must also be approved by the respective vehicle manufacturer with the vehicle in its original, as-built configuration. Contact Hendrickson and the respective vehicle manufacturer for approval of additional applications or capacities.
- For additional details regarding specifications; applications; capacities; and operating, service and maintenance instructions, refer to applicable Hendrickson technical literature or contact Hendrickson at 630-910-2800.
- Actual product performance may vary depending upon vehicle configuration, operation, service and other factors.
