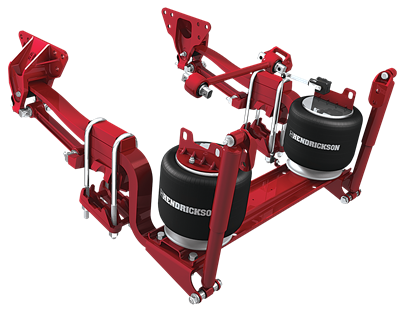

HAS™ Single-Axle

Single-Axle Rear Air Suspension

The durable construction of Hendrickson's HAS™ rear air suspension improves handling characteristics and reduces scheduled maintenance. Large-volume air springs and premium shocks absorbers provide a softer ride and greater protection from the effects of road shock on the chassis, equipment, drivers and passengers. Designed for multiple applications including P & D, beverage, fire rescue, recycling vehicles, sweepers, tanker tractors, RVs, on-highway vans, school buses and commercial bus applications.

Literature

Sales Literature

45745-080 HAS Single BrochureREV G02/20471 KB

Parts Lists

SP-149 HAS Tandem, 40LH and Single Parts ListREV J04/201.1MB Sp-296 HAS for Ford VehiclesREV B01/17445 kB

Technical

17730-212 HAS Series, HAS 40LH Service InstructionsREV D03/124.5 MB 17730-273 HAS Series Pre-delivery Inspection and Preventive Maintenance IntervalsREV A02/11172 KB 17730-220 HAS Series Technical Procedure U-bolt TighteningREV E82 KB

Selection Guides

45745-270 HAS/HA Slipper Pad Selection Guide REV B09/08143 KB
Extended Warranty Truck Literature



Superior Ride

  • Shock absorbers tuned for optimum damping characteristics to provide maximum driving comfort.
  • Air springs adjust to changing load conditions to deliver superb ride quality.
  • Extended-length main support member generates lower spring rate for optimized roll stiffness, providing a more comfortable and compliant ride.


Exceptional Stability & Handling

  • Main support members provides neutral roll steer for better handling.
  • Durable ULTRA ROD® enhances handling during cornering by controlling lateral forces to maintain axle position.


Reduced Maintenance

  • Durable pivot bushing connection provides quite operation and helps extend suspension service life.
