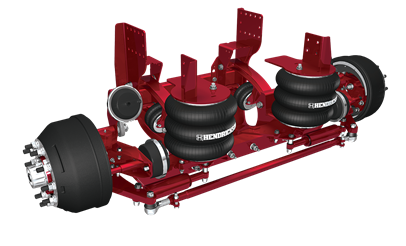

COMPOSILITE EXS20

Next Generation 20K Truck Steerable Lift Axle

COMPOSILITE EXS TRUCK is Hendrickson’s innovative next generation of steerable lift-axle suspension systems engineered for enhanced durability and performance. Several technological advancements enabled Hendrickson to take this concept from theory to the road. Inset lower beams help to optimize lateral stiffness and to eliminate the need for V-rods. Zero-torsion rubber bushings provide increased service life and lower cost of ownership with reduced down-time. The patented STEERTEK axle technology increases structural durability and incorporates bolt-on axle seats for easier serviceability and re-configuration, thereby lowering the cost of ownership. In addition, the more robust COMPOSILITE EXS has a stellar 7-year structural warranty.

Literature

Sales Literature

Service Literature

Technical

Selection Guides

INSET LOWER BEAMS

  • Optimized lateral stiffness
  • Eliminates the need for V-rod


WELD-FREE HANGER DESIGN

  • No welding on front side rail hangers minimizes stress risers
  • Flat hanger design allows for flexibility of bolt hole patterns


ZERO-TORSION RUBBER BUSHINGS

  • Provides increased durability and bushing life
  • Improves overall cost of ownership with less downtime


PATENTED STEERTEK AXLE TECHNOLOGY

  • Proven design on front steer applications
  • Weld-free axle connection
  • Increased structural durability and warranty coverage


TRADITIONAL TIE ROD with COIL SHOCKS

  • CTR Compliant Tie Rod option is recommended for tag applications


BOLT-ON AXLE SEATS

  • Easier serviceability for ride height changes or altering tire sizes
  • Less costly repairs — change seats, not axle
  • Lower cost of ownership
