Auxiliary > Truck Steerable Lift Axle > TOUGHLIFT LKT

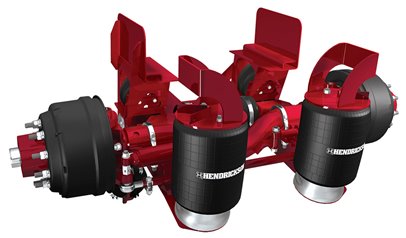

Leading Kingpin – 25K Dual Tire Steer Lift Axle

The new TOUGHLIFT™ LKT suspension and axle were designed around the proven HLM concept for rigorous environments and incorporates the popular Hendrickson’s QUIKALIGN® feature and TRI-FUNCTIONAL® Bushings. The fabricated knuckle design minimizes king pin offset for a more efficient package while incorporating a fully integrated system designed by Hendrickson.

Literature

Sales Literature

H756 - TOUGHLIFT LKREV A06/201.2M H769 - Truck Lift Axle SuspensionsREV F02/206.1M H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k

Parts Lists

PL-H758 TOUGHLIFT Dual Tire Steer Lift Axle Parts ListREV B03/14792k

Service Literature

H800 Lift Axle Warranty Claim Request FormREV C02/2158k

Technical

OM-H754 Owner's Manual - Steerable Auxiliary Axle SystemsREV G07/191.8M TP-H759 TOUGHLIFT LK Technical Procedure InstallationREV C06/201.9M TP-H785 Compliant, Heavy-duty, Compliant and Round Tube Tie RodsREV C03/21770k TB-H803 Lift and Bridge Axle Wheel Ends Bulletin Component UpdatesREV A09/16236kB

Selection Guides

TP-H854 Driveline MeasurementREV -02/212.2M

AUXILIARY
LITERATURE

FEATURES & BENEFITS
SPECIFICATIONS

QUIK-ALIGN®

Simplifies the alignment process for quick and reliable adjustment

TRI-FUNCTIONAL® Bushing

Proven to improve absorptions of brake and acceleration forces while providing superior roll stiffness

Hendrickson Leading Kingpin Knuckle Design

Minimizes kingpin offset for a more efficient turning result

Turning Radius

Minimum wheel cut is 20 degrees for Truck Applications — Ontario SPIF compliant

Value-Added Options

Lockstraight

Automatic wheel lock while vehicle is in reverse
