Auxiliary > Truck Non-Steer Lift Axle > TOUGHLIFT FRT13

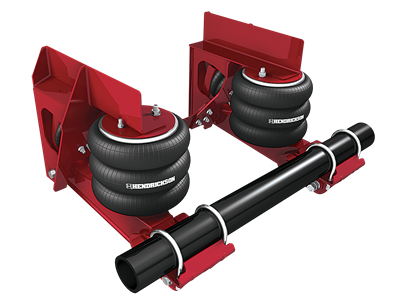

TOUGHLIFT FRT13

13K Fixed Axle Suspension System (formerly HLR-2)

The TOUGHLIFT FRT13 Series is a high-lifting, light duty, fixed lift axle system available in pusher or tag axle configurations.

Literature

Sales Literature

H804 TOUGHLIFT FRT brochureREV -06/201.1 MB H769 - Truck Lift Axle SuspensionsREV F02/206.1M H654 - TOUGHLIFT FR Series FlyerREV C06/20537K H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k

Service Literature

H621 Non-Steerable Lift Axle Installation InstructionsREV -12/03636KB OM-H757 Owner's Manual - Non-Steerable Auxiliary Axle SystemsREV F07/192.2MB H800 Lift Axle Warranty Claim Request FormREV C02/2158k

Technical

H750 - Truck Lift Axle Specification GuideREV J11/20257k H856 - Brake CertificationsREV -12/20202k

Selection Guides

TP-H854 Driveline MeasurementREV -02/212.2M
AUXILIARY
LITERATURE
  • Available in multiple beam versions to accommodate varying dimensions of truck applications and configurations.
  • Accommodates ride heights of 8 to 14.5 inches.
  • Axle is positioned at the rear of the suspension, allowing greater clearance of vehicle undercarriage.
  • Available in pusher or tag axle configurations.
