*Hendrickson Recommends 0.625" nominal wall thickness.

• Available in 40,000 and 46,000 lb. capacities
• Ride heights range from 9 to 19 inches (model dependent)
• Features unique "K" shaped bracing for more air tank and auxiliary component room
• Accommodates either 96-inch or 102-inch wide trailers
• An optional 40,000-lb. ramp-ready system is available — easily installs to provide a spacious ramp bay

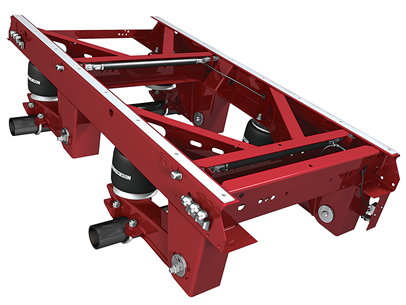

K-2® Slider Box and Rails — More Strength, Less Weight

• Slides easily on durable, full-length slider pads
• High-strength, long-life body rails of grade 80 steel available with four- or six-inch pin hole spacing
• Patented "K" bracing absorbs road jolts
• Unmatched strength-to-weight ratio gives longer life

Unparalleled Support

• 5-year/500,000-mile structural warranty
• Backed by thousands of dealers
• Off-the-shelf replacement parts

TRI-FUNCTIONAL® Bushing

• Proven technology provides mile after mile of worry-free service
• Voids positioned to optimally absorb all road forces
• The ideal combination of ride softness and roll stability
• Specially formulated rubber compound stands up to the toughest operating conditions
• Only two long-life bushings in each suspension — fewer than any other design
• Five- or seven-year warranty depending on application

Rigid Trailing Arm/Solid Axle Connection

• Simplicity of design reduces the number of moving parts, bushings and fasteners for minimal maintenance
• Provides superior stability while eliminating torque rods and stabilizer bars
• Eliminates retorquing requirements
• Low spring rate for exceptional ride quality
• Compatible with industry standard axles
• Large bore shocks for longer life

QUIK-ALIGN® Pivot Connection (Standard on Most Models)

• Provides quick, easy axle realignment
• Save time and money should axle realignment become necessary
• TORQ-RITE® shear bolt eliminates guesswork
• Realign using standard tools — no torque wrench or welding required
• Optimize tire life

Limit Trailer Drop and Walk

• Optional SURELOK® for safer loading and unloading
  • Limits vertical and horizontal movement
  • Holds trailer at ride height
  • Activates automatically with trailer parking brakes
• Manual and automatic dump valve options
  • Limits trailer drop and walk
  • Maintains load on internal bumpers

First Fully-Pneumatic Slider Pin Activation

• Optionally equipped with QUIK-DRAW® pneumatic pin-pull mechanism
  • Driver-friendly valve — finger-tip operation
  • Increases driver safety and satisfaction while maximizing productivity
  • Automatic reset engages pins when parking brake releases
• Standard pin release features easy-to-operate lift handle
