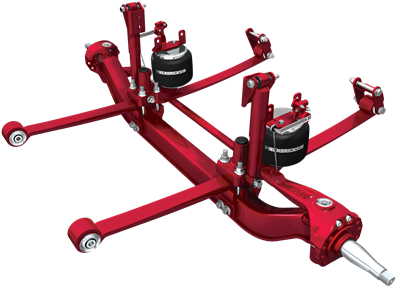

AIRTEK NXT

Integrated Front Air Suspension and Steer Axle System

In the spirit of innovation, Hendrickson has developed the AIRTEK® NXT next generation air suspension system. AIRTEK NXT combines the STEERTEK™ NXT axle and air suspension technology with an advanced lightweight integrated clamp group design. Hendrickson’s advanced air suspension technology assists in protecting drivers from road irregularities and hazards, providing a premium ride. The new design is 65 pounds lighter than standard content to improve load capacity and help enhance fuel efficiency on the Freightliner Cascadia®

Literature

Sales Literature

45745-459 - AIRTEK NXT FlyerREV F01/20812k 45745-459FR - AIRTEK NXT French FlyerREV F02/20807K 45745-478 - Freightliner Cascadia - AIRTEK NXT - AERO CLADREV C02/21613k 45745-271 STEERTEK NXT / STEERTEK Axle Limited Warranty StatementREV F02/17135kb INTL 143 - Hendrickson Product Solutions for Freightliner® Cascadia®REV B02/21407K

Parts Lists

SP-307 AIRTEK NXT Parts List for Freightliner Cascadia VehiclesREV D05/19771kB

Technical

17730-307 AIRTEK NXT Technical Procedure for Freightliner Cascadia Vehicles REV C07/205.6 Mb SEU-0223 STEERTEK NXT/STEERTEK Tie Rod Assemblies & Ends Technical Bulletin REV E07/20222kb
Extended Warranty Truck Literature


Improved Ride and Comfort

  • Advanced air suspension technology assists in protecting drivers from road irregularities and hazards

Lightweight STEERTEK™ NXT Axle and Advanced Clamp Group Design

  • The box-shaped cross section resists horizontal, vertical and twisting forces more effectively than traditional I-beam axles which improves handling
  • Continuous beam architecture minimizes stress points for added durability
  • Weighs less than original I-beam and spring clamp group

Brake Compatibility

  • Compatible with drum or disc brakes
  • Accepts ¾ in. brake hardware

Reduced Maintenance

  • Durable rubber front and rear bushings require no lubrication
  • Premium kingpin bushings and seals provide enhanced protection from the elements to improve bushing life and extend service up to 100,000 miles*
  •  STEERTEK NXT comes with a standard 10-year, 1 million mile limited warranty**
  • Unique two-piece knuckle design eliminates the need to remove the kingpin to service the knuckle
