Auxiliary > Truck Steerable Lift Axle > COMPOSILITE SCO

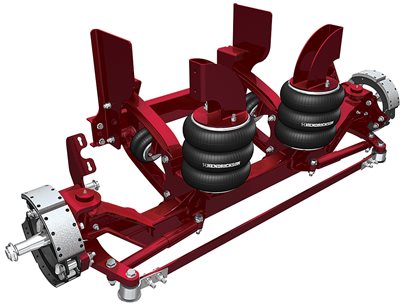

COMPOSILITE SCO

For Roll-Off Applications

Hendrickson introduces the COMPOSILITE® SCO for roll-off applications. The popular COMPOSILITE family has grown and is now available in 13,500 to 20,000 pound capacities. The SCO Series fits flat to the frame to give maximum clearance from cylinder beams, attachments and sliding components. Scalloped hangers aid in the clearance around
roll-off cylinders.

The ride springs and parallelogram components are positioned inside of the frame rails. Beams are spaced inboard one-inch for additional clearance, and unique air-spring plates mount to the inside of the frame rail.


Literature

Sales Literature

H716 - COMPOSILITE Roll-Off BrochureREV F03/211.2M H769 - Truck Lift Axle SuspensionsREV F02/206.1M H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k

Service Literature

H743 - Auxiliary Customer PoliciesREV -11/1286k TB-H825 - Hendrickson Lift Axle DimensionsREV B09/195.6M TP-H633 COMPOSILITE SC Steerable Auxiliary Axle Technical ProcedureREV J03/212.4 MB H800 Lift Axle Warranty Claim Request FormREV C02/2158k TP-H848 King Pin KitsREV -06/201.1M

Technical

H750 - Truck Lift Axle Specification GuideREV J11/20257k H856 - Brake CertificationsREV -12/20202k OM-H754 Owner's Manual - Steerable Auxiliary Axle SystemsREV G07/191.8M TB-H803 Lift and Bridge Axle Wheel Ends Bulletin Component UpdatesREV A09/16236kB TP-H785 Compliant, Heavy-duty, Compliant and Round Tube Tie RodsREV C03/21770k
AUXILIARY
LITERATURE

Scalloped Hanger

  • Improves clearance around the cylinder


Air-spring Plate

  • Mounts inside the frame rail


Parallelogram Beams

  • Spaced inboard one inch for extra cylinder clearance and to ensure lift plates remain parallel for longer air-spring life


Inboard-mounted Ride Springs

  • Provide additional clearance from the cylinder
