Trailer > Wheel-end & Brakes > Drum Brake Components

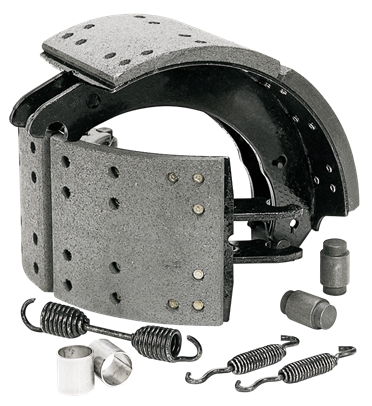

HXS® Hendrickson Extended Service™ brakes offer fully integrated solutions that extend brake component life and reduce maintenance costs.  Available on all INTRAAX® and VANTRAAX® integrated suspension systems and TRLAXLE® non-integrated axles, Hendrickson features a complete line of high-quality brake shoe assemblies designed to suit various applications and brake ratings.

Hendrickson also offers a complete line of replacement brake shoes, camshafts and cam tube kits to ensure continued superior performance of your INTRAAX®, VANTRAAX™ integrated system or TRLAXLE® non-integrated axle.

Sales Literature

Parts Lists

Service Literature

Hendrickson Lining Series Available Brake Size Service Brake Shoe Kit FMSI Max Brake Rating*
H20 12.25 x 7.5” HXS S-32486-3 4692 20,000
H20 16.5” x 7” STD S-21266-1 4515 20,000
16.5 x 7” HXS S-23750-1 4707 20,000
15” x 8.625” HXS S-27808-1 4710 20,000
16.5” x 8.625” HXS S-23751-1 4711 22,500
H23 16.5” x 7” STD S21266-8 4515 23,000
16.5 x 7” HXS S-23750-3 4707 23,000
16.5” x 8.625” HXS S-23751-3 4711 25,000
H26 16.5 x 7” HXS S-23750-9 4707 26,000
16.5"x 8.625" HXS S-23751-9 4711 29,000
ULTRAA20 16.5 x 7” HXS S-23750-2 4707 20,000
16.5” x 8.625” HXS S-23751-2 4711 23,000
