Capacity1
(lbs.) |
Installed Weight2
(lbs.) |
Site Travel3
Rating (lbs.) |
GVW
(lbs.) |
GCW
(lbs.) |

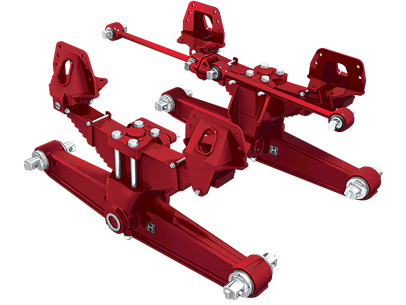

| RT SUSPENSIONS |
| 34,000 |
1,199 |
46,000 |
60,000 |
125,000 |
| 40,000 |
1,207 |
55,000 |
73,000 |
160,000 |
| 46,000 |
1,301 |
60,000 |
80,000 |
190,000 |
| 50,000 |
1,418 |
65,000 |
80,000 |
225,000 |
| 52,000 |
1,443 |
65,000 |
80,000 |
245,000 |
| 65,000 |
Varies |
75,000 |
85,000 |
260,000 |
| 70,000 |
Varies |
75,000 |
85,000 |
260,000 |
| RTE SUSPENSIONS |
| 34,000 |
1,253 |
46,000 |
60,000 |
125,000 |
| 40,000 |
1,242 |
55,000 |
73,000 |
160,000 |
| 46,000 |
1,338 |
60,000 |
80,000 |
190,000 |
| 50,000 |
1,465 |
65,000 |
80,000 |
225,000 |
1. Contact Hendrickson for availability of additional capacities and axle spacing.
2. Installed weight includes complete suspension, torque rods, axle brackets and frame brackets at 54 inch axle spacing. Capacities over 65K vary, contact Hendrickson engineering for more information.
3. Site Travel Rating – operations using vehicles equipped with liftable pusher or tag axles must not exceed published ratings. Ratings are limited to no more than five percent of vehicle operation at a speed not to exceed five mph. Liftable pusher or tag axles should only be raised (or unloaded) to improve vehicle maneuverability in off-road use or when vehicle is empty. Site ratings are consistent with published axle manufacturer’s limitations. Axle and suspension site travel specifications must not be exceeded.
4. Contact HENDRICKSON Engineering.
