Auxiliary > Truck Steerable Lift Axle > COMPOSILITE SCT20

COMPOSILITE SCT20

Steerable Suspension System

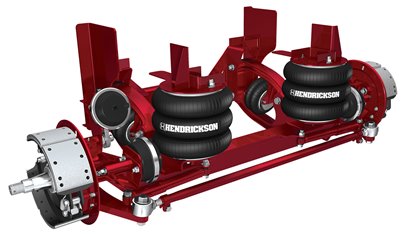

The new COMPOSILITE® SCT20 combines durability and performance in a steerable suspension system. The complete 20,000 pound capacity suspension system and kit are currently available for truck mount configuration only. A kit version is also available for 13,500 pound capacity in truck or trailer mount configurations.

Literature

Sales Literature

45745-414 Mixer Suspension SolutionsREV B06/20964K H769 - Truck Lift Axle SuspensionsREV F02/206.1M H735 - CTR System - Compliant Tie Rod TechnologyREV B06/20663K H789 Air Disc Brakes for Lift AxlesREV C02/20517k H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k

Parts Lists

H732 - COMPOSILITE SC Parts ListREV C01/201.1M

Service Literature

H501 Torque Specification StickerREV E06/2029k TB-H825 - Hendrickson Lift Axle DimensionsREV B09/195.6M TP-H633 COMPOSILITE SC Steerable Auxiliary Axle Technical ProcedureREV J03/212.4 MB H743 - Auxiliary Customer PoliciesREV -11/1286k H800 Lift Axle Warranty Claim Request FormREV C02/2158k TP-H848 King Pin KitsREV -06/201.1M

Technical

H856 - Brake CertificationsREV -12/20202k H750 - Truck Lift Axle Specification GuideREV J11/20257k OM-H754 Owner's Manual - Steerable Auxiliary Axle SystemsREV G07/191.8M TB-H787 COMPOSILITE SCT/SCW(B) Truck and Trailer Mount EnhancementsREV A09/15311kb TP-H785 Compliant, Heavy-duty, Compliant and Round Tube Tie RodsREV C03/21770k TB-H803 Lift and Bridge Axle Wheel Ends Bulletin Component UpdatesREV A09/16236kB
AUXILIARY
LITERATURE
  • Adjustable frame width and ride height allow for stocking of one suspension to meet several different needs.
  • Fabricated knuckle and integrated brake reduce overall weight of suspension and allow for Ackermann customization.
  • CTR Technology is designed to lower maintenance costs and increase uptime by providing a resilientimpact resistant tie-rod assembly.
  • Optimized linear damper eliminates coil spring and improves service life.
  • Single lift spring design provides greater maneuverability and improved performance
  • Parallelogram design ensures lift plates remain parallel for longer air spring life while maintaining proper wheel tracking
  • Delivers up to 9 inches of lift and 12 inches of axle travel for excellent ground clearance
  • Simple design and fewer parts translate to easy installation and less maintenance
  • Also available in kit form with no axle
