• Progressive load spring system easily adjusts to the load for an enhanced combination of empty-ride quality and loaded stability.

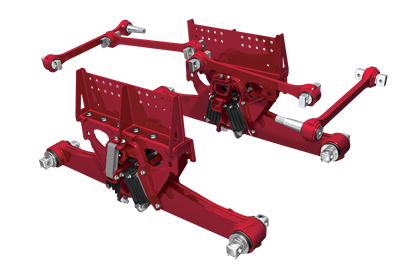

• Extra wide spring centers and a unique progressive load spring provide exceptional stability for demanding applications such as refuse, concrete mixers and dump. Unlike other walking-beam suspensions, the innovative HAULMAAX design eliminates fixed center bushing pivot points to reduce wheel hop.
• Lightweight design is hundreds of pounds lighter than competitive suspensions
• Solid rubber bolster springs and auxiliary springs optimize empty ride quality with outstanding loaded stability
• Up to 17 inches of diagonal wheel articulation for superb off-road mobility in harsh environments
• Improved ride reduces road shock and vibration to the vehicle for longer service life and fewer repairs
• Center bushings eliminated for reduced maintenance
• Equalizing beams distribute load equally between both axles in off-road and uneven terrain conditions
• Optional shock absorbers provide additional driver comfort
• Bar pin end bushings provide rugged axle connection and extended bushing life
• Hendrickson genuine torque rods help control lateral forces and optimize resistance to wind up during acceleration and braking

Hendrickson approves the use of HAULMAAX® EX in the following vocational truck applications: dump, concrete mixer, refuse, logging, crane / boom, platform and fire / rescue.

1. Installed weight includes complete suspension, torque rods, axle brackets and frame brackets; add 31 lbs. for shock absorbers.
2. Contact Hendrickson for applications that may exceed GVW approval ratings.
3. Job-site travel rating — operators using vehicles equipped with liftable pusher or tag axles must not exceed published ratings. Job-site ratings are limited to no more than five percent of vehicle operation at speeds not to exceed five mph. Liftable pusher or tag axles should only be raised (or unloaded) to improve vehicle maneuverability in job-site applications or when vehicle is empty. Job-site travel ratings are consistent with published axle manufacturer’s limitations. Axle and suspension job-site travel specifications must not be exceeded.
4. Suspension articulation may exceed vehicle’s capability and may be limited by vehicle manufacturer; vehicle manufacturer installed axle stops may restrict suspension’s articulation.
5. HAULMAAX EX ride height measurements are taken from the centerline of the axle to the bottom of the truck frame.
6. Contact Hendrickson for availability of beam lengths.
7. Shock absorbers are required in tractor and logging applications. Ride and traction may be improved in other applications with shock absorbers. Ride performance can be subjective and may be dependent on many factors beyond the suspension design such as cab suspension, road conditions, body / auxiliary equipment, frame specifications, etc. Contact Hendrickson or your truck manufacturer / dealer for further information.
8. 52K installed weight includes complete suspension, double rebound straps, longitudinal torque rods, Hendrickson TRAAX ROD™ transverse torque rods, axle brackets and frame brackets; add 31 lbs. for shock absorbers.

Technical literature available at on the website or contact Hendrickson at 855.743.3733.
