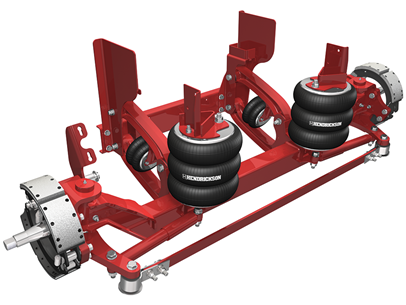

COMPOSILITE SCT13

Lightweight Steerable Suspension System

The COMPOSILITE® SCT13 offers a reduced system weight up to 69 pounds and a minimized package space of 22.1 inches. Hendrickson has taken tie-rod technology one step further by introducing the patent-pending Compliant Tie Rod (CTR) Technology.

Literature

Sales Literature

45745-414 Mixer Suspension SolutionsREV B06/20964K H769 - Truck Lift Axle SuspensionsREV F02/206.1M H735 - CTR System - Compliant Tie Rod TechnologyREV B06/20663K H789 Air Disc Brakes for Lift AxlesREV C02/20517k H624 Auxiliary Lift Axle Suspension Limited Warranty StatementREV G05/20450k

Parts Lists

H732 - COMPOSILITE SC Parts ListREV C01/201.1M

Service Literature

H501 Torque Specification StickerREV E06/2029k TB-H825 - Hendrickson Lift Axle DimensionsREV B09/195.6M TP-H633 COMPOSILITE SC Steerable Auxiliary Axle Technical ProcedureREV J03/212.4 MB H743 - Auxiliary Customer PoliciesREV -11/1286k H800 Lift Axle Warranty Claim Request FormREV C02/2158k TP-H848 King Pin KitsREV -06/201.1M

Technical

H856 - Brake CertificationsREV -12/20202k H750 - Truck Lift Axle Specification GuideREV J11/20257k OM-H754 Owner's Manual - Steerable Auxiliary Axle SystemsREV G07/191.8M TB-H793 COMPOSILITE SC Truck Mount Enhancement, Compliant Tie Rods (CTR)REV B09/191MB TP-H785 Compliant, Heavy-duty, Compliant and Round Tube Tie RodsREV C03/21770k TB-H803 Lift and Bridge Axle Wheel Ends Bulletin Component UpdatesREV A09/16236kB
AUXILIARY
LITERATURE
  • CTR Technology is designed to lower maintenance costs and increase uptime by providing a resilient, impact-resistant tie-rod assembly
  • Optimized linear damper eliminates coil spring and improves service life
  • Inline air springs maximize packaging space and help remove the risk of driveline interference
  • Adjustable frame width and ride height allow stocking of one suspension to meet several needs
  • New optimized package design of 22.1 inches allows more room for multiple lift axle configurations
  • Fabricated knuckle and integrated brake reduces overall weight of suspension and allows for Ackerman customization
  • 31-degree wheel cut provides greater maneuverability and improved performance
  • Provides 13 inches of total axle travel
  • Integrated pre-plumbed option available
