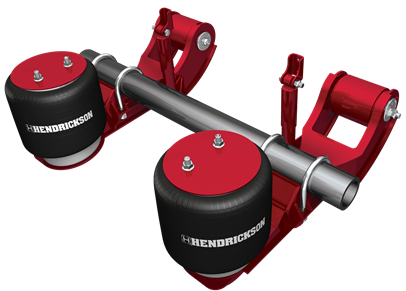

With hundreds of thousands of HT SERIES suspensions on trailers running on- and off-road around the world, these models have been the suspensions of choice for virtually every trailer application for nearly a decade. The HT SERIES delivers rugged dependability and outstanding ride quality and control for vans, platforms, dumps, tankers, dollies and pups, lowboys, auto haulers, trailers on flat cars, B-trains, Michigan trains and container chassis. Our patented TRI-FUNCTIONAL® Bushing in unison with a rigid beam and solid axle connection provides the ideal combination of ride softness and roll stability.

Sales Literature

Parts Lists

Service Literature

Ordering Guides

Model Ride Height
(in.)
Jounce
(in.)
Rebound
(in.)
Weight
(lbs.)1
Compatible
Trailing
Suspension
HT250YS2 6.5 3.4 4.5 365 HT250US
with
Compatible
Specs3
7.5 3.9 4.5 365
9.0 4.8 4.5 365
HT300YB 6.5 3.6 4.1 467 HT300US
with
Compatible
Specs3
7.5 4.2 4.1 467
9.0 5.0 4.1 467


1. Weights shown above are for standard models (standard air spring and shock) and do not include axle

2. Model number varies depending on options selected

3. Consult Hendrickson to verify suspension comparability
