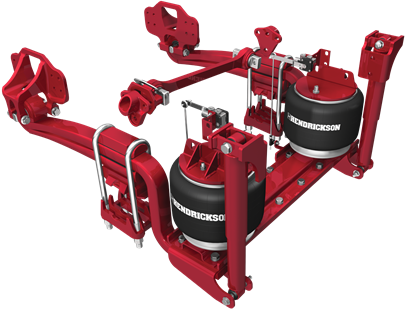

ROADMAAX Fire

High Capacity Rear Air Suspension for Fire and Rescue

ROADMAAX® is designed specifically for heavy-duty fire and rescue markets with ride quality and equipment protection being its cornerstone features. The suspension delivers enhanced stability, handling and ride quality even in the most challenging environments where vehicles encounter sharp turns and unexpected ground and environmental conditions. The integration of Hendrickson’s proven main support member spring technology, with its wide stance air springs, provides a balance of predictable handling and ride quality even in the most demanding environments.

Literature

Sales Literature

45745-487 - ROADMAAX Fire/Rescue FlyerREV B07/19484k

Parts Lists

SP-194 ROADMAAX Parts List for E-One VehiclesREV A07/19422kB SP-196 ROADMAAX 35K Rear Air Suspension Parts List for Spartan Fire & RescueREV A06/20431 kB SP-197 ROADMAAX Rear Air Suspension Parts List for SutphenREV A08/20431kB SP-198 ROADMAAX Rear Air Suspension Parts List for Ferrara Fire & RescueREV A06/20422 kB SP-322 ROADMAAX Parts List for Rosenbauer VehiclesREV A02/19373kB SP-195 ROADMAAX Parts List for PierceREV A01/20462kB

Technical

17730-322 ROADMAAX Technical Procedure for Fire and Rescue VehiclesREV A07/193 MB
Extended Warranty Truck Literature

Superior Ride

  • The main support members extended-length generates lower spring rate for optimized roll stiffness providing a more comfortable and compliant ride
  • Longer main support member allows the air springs to carry more of the vertical load
  • Shocks are tuned for optimum damping characteristics to provide maximum driving comfort
  • Air springs adjust to changing load conditions to deliver superb ride quality
  • Fast acting height control valves maintain precise ride height control through changing road surfaces, loads and driving conditions


Exceptional Stability and Handling

  • Durable Hendrickson torque rods enhance handling during cornering by controlling lateral forces to maintain axle position
  • The main support member is efficiently designed to provide neutral roll steer for better handling


Reduced Maintenance

  • Wide footprint of the frame hanger bracket distributes load over a larger area for reduced frame stress
  • Fabricated heavy-duty torque rods provide greater durability over conventional rods
