INTRAAX® AAL
Remember This

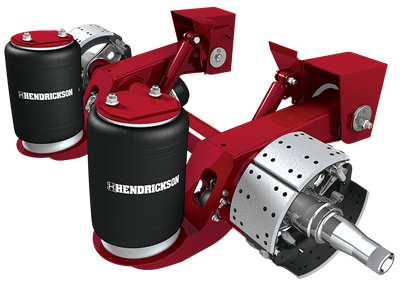

AAL 23K/25K/30K Low-Ride Height/Liftable

INTRAAX brings durability and weight savings to low-ride and liftable applications. Designed for performance on platforms, dumps, drop-decks, lowboys, tankers, B-trains, livestock and specialty trailers.

Sales Literature

L1265 - Soft Coat FlyerREV A11/19604K L614 - INTRAAX BrochureREV T01/201.7M L1066 - INTRAAX Low-Ride Height/Liftable (AAL 23K/AAL 25K/AAL 30K) FlyerREV F02/20343k L801 - Liftable Suspension GuideREV E11/191.2M L977 - Trailer Suspension Systems and Axle Systems Identification GuideREV I11/193.5M L667 - High Control for INTRAAX and HT SeriesREV C06/20219k L729 – INTRAAX LOW RIDE SPECIFICATIONSREV J06/20280k

Parts Lists

L1060-AAL Parts ListREV D11/20853k L1266 - Frame Brackets Parts ListREV H06/20447K L1287 - Shock and Shock Strap Parts ListREV F08/20369K L1182 - Controls Parts CatalogREV I03/201.8M

Service Literature

L1073 - INTRAAX & CONNEX Suspension Information and RequirementsREV L09/19571k L583 - Comprehensive Warranty StatementREV AC11/20608k L635 - INTRAAX® Shock Mount Assembly ProcedureREV E02/141M L839 - Reapplying Axle Sealant ProcedureREV A06/0761 KB L870 - Rear Shock Tower Reinforcement Kit InstructionsREV 07/04176 KB

Genuine Parts

L1193 - INTRAAX AAL Popular Service PartsREV C06/20577k

Ordering Guides

E602 - INTRAAX Electronic Ordering GuideREV QQ11/20918K L602 - INTRAAX Ordering GuideREV QQ11/20213K
2:15 INTRAAX® - Integrated Trailer Air Suspension
INTRAAX
New Model Reference		 INTRAAX
Old Model Reference		 Suspension
Capacity (LBS.)		 Axle Rating1 (LBS.) Ride Height2 (IN.) Base Model Weight
(LBS.)
AAL 23K AA230L 23K 23K 6.5, 7.5, 8, 9, 12, 14, 15, 16, 17, 19 570
AAL 25K AA250L 25K 25K 6.5, 7.5, 8, 9, 12, 14, 15, 16, 17, 19 586
AAL 30K AA300L 30K 25K 9, 12, 14, 15, 16, 17, 19 612

1. Axle structure rating only. Brakes, wheels and tires rated separately.

2. Suspension ride heights must be set within Hendrickson specifications in order to provide load equalization among axles and to ensure proper suspension performance. Failure to maintain proper ride height settings can lead to suspension, axle or trailer damage.
