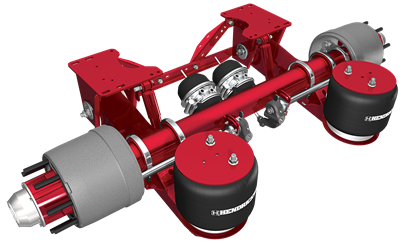

Unitized Trailer Air Suspension System

CONNEX® unitized trailer air suspension delivers a complete system that offers maximized operating efficiency and legendary durability. CONNEX is ideal for low-ride height applications that require a 12.25-inch brake package. Created from Hendrickson’s durable HT™ SERIES suspension and trusted TRLAXLE® trailer axle, CONNEX delivers a fully assembled suspension/axle system that saves OEMs time and resources and helps streamline assembly processes.


Sales Literature

Parts Lists

Service Literature

Ordering Guides

  CXU 23K CXU 25K
CAPACITY 23,000 lbs (10,400 kg) 25,000 lbs. (11,300 kg)
TRAILER TYPES UNITED STATES AND CANADA
Drop Deck Van
Auto Hauler
Flat
Lowboy / Drop Deck
Dump
Grain
Livestock
MEXICO, CENTRAL AND SOUTH AMERICA
None
AXLE DATA 5-inch diameter round, 12.25-inch brakes
AXLE ARRANGEMENT Single, tandem: 122-inch maximum axle spacing
Tri or quad: 144-inch maximum total spacing
FRAME TYPES Steel or aluminum; 96-inch or 102-inch wide trailers
BASE MODEL DESCRIPTION CONNEX™ underslung suspension, 6.5-inch ride height, standard travel, weld-on wingless frame brackets with QUIK-ALIGN®, 77.5-inch track and forward mount standard duty shocks.
BASE MODEL WEIGHT 965 lbs. 980 lbs.
OTHER OPTIONS Additional options include shock straps and high damping shocks. Contact your Hendrickson representative to discuss these and other product options such as pre-torqued pivot bolts.
