INTRAAX AANL
Remember This

AANL 23K Low-Ride Height-Liftable

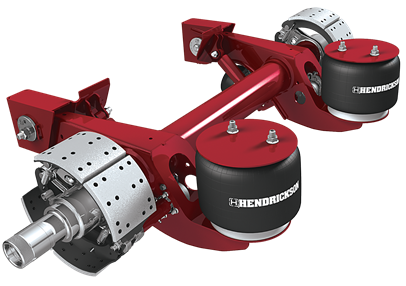

Hendrickson trimmed an average of 75 pounds from the low-ride liftable integrated suspension-axle-brake system already known throughout the industry for its lightweight and reliable performance. The INTRAAX® AANL 23K comes standard with the large-diameter axle (LDA™), allowing you to move even more cargo on each haul.

The ultimate system for weight-conscious haulers running platforms, lowboys and drop-decks, the INTRAAX AANL 23K boasts a capacity of 23,000 pounds in ride heights from 6.5 to 17 inches.

Sales Literature

L1265 - Soft Coat FlyerREV A11/19604K L1309 - INTRAAX UBL FlyerREV -06/20491K L614 - INTRAAX BrochureREV T01/201.7M L801 - Liftable Suspension GuideREV E11/191.2M L958 - INTRAAX AANL 23K FlyerREV F06/20595K L707 - Trailer Application GuideREV M01/20292k L729 – INTRAAX LOW RIDE SPECIFICATIONSREV J06/20280k L633 - Application QuestionnaireREV E09/19256K L667 - High Control for INTRAAX and HT SeriesREV C06/20219k L761 - Understanding Air RideREV J01/204.8M L977 - Trailer Suspension Systems and Axle Systems Identification GuideREV I11/193.5M

Parts Lists

L1266 - Frame Brackets Parts ListREV H06/20447K L1287 - Shock and Shock Strap Parts ListREV F08/20369K L1182 - Controls Parts CatalogREV I03/201.8M L1051 - INTRAAX AANL 23K Parts ListREV B10/20273k

Service Literature

L583 - Comprehensive Warranty StatementREV AC11/20608k L583FR - Énoncé intégral de la garantie États-Unis et CanadaREV AC02/21609k L1073 - INTRAAX & CONNEX Suspension Information and RequirementsREV L09/19571k L750 - Bushing Tube Spacer Inspection/Replacement ProcedureREV D10/201.3M L635 - INTRAAX® Shock Mount Assembly ProcedureREV E02/141M L427 - Bushing Replacement ProcedureREV H02/192.6M B106 - Pivot Bushing Inspection ProcedureREV D05/18841k L839 - Reapplying Axle Sealant ProcedureREV A06/0761 KB T82004 - Pierced Alignment Guide RepairREV -05/18519k

Ordering Guides

E602 - INTRAAX Electronic Ordering GuideREV QQ11/20918K L602 - INTRAAX Ordering GuideREV QQ11/20213K
5:40 INTRAAX® - Watch the Evolution 2:15 INTRAAX® - Integrated Trailer Air Suspension
INTRAAX
Model Reference		 Suspension
Capacity (LBS.)		 Axle Rating1 (LBS.) Ride Height2 (IN.) Base Model Weight
(LBS.)
AANL 23K 23K 23K 6.5, 7.5, 9, 12, 14, 15, 16, 17 521

1. Axle structure rating only. Brakes, wheels and tires rated separately.

2. Suspension ride heights must be set within Hendrickson specifications in order to provide load equalization among axles and to ensure proper suspension performance. Failure to maintain proper ride height settings can lead to suspension, axle or trailer damage.
